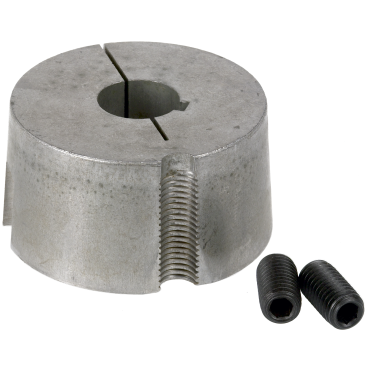

Dodge 2517X42MM12X3.3MM Taper Lock Bushing

Product Description

Dodge Taper Lock Bushing with MPN 2517X42MM12X3.3MM is designed for reliable performance in mechanical applications. This bushing is ideal for use in machinery where efficient coupling is necessary.

• Easy installation and removal
• Compact design for enhanced space efficiency
• Flush mounting ensuring no protruding parts

Product Highlights

This Taper Lock Bushing provides a secure fit for various shaft sizes. It is part of the 2517 series, offering a bore size of 42 mm, and is suitable for metric applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944687

Technical Specifications

• Bushing Series: 2517
• Material: Sintered Steel
• Length Through Bore: 1 3/4 inches
• Cap Screws: 2
• Bore Type: Metric
• Torque Capacity: 966.66 lbf
• Bolt Circle Diameter: 3 1/4 inches
• Large Diameter: 3.38 inches
• Keyway Size: 12 mm x 3.3 mm
• Capscrew Size: 1/2 x 1
• Wrench Torque: 430 lbf
• Bore Size: 42 mm
• Weight: 2.61 lb
• EAN or UPC: 782475530748
