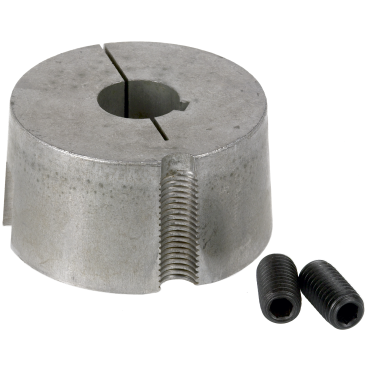

Dodge 2517X30MM8X3.3MM Taper Lock Bushing

Product Description

The Dodge 2517X30MM8X3.3MM Taper Lock Bushing is designed for efficient power transmission in various applications. This component simplifies the coupling process, making it easy to install and remove. Its design allows for a clean and compact fit, ensuring it does not protrude, which is ideal for tight spaces.

• Easy on, easy off installation
• Sintered steel material for durability
• Flush mounting design

Product Highlights

The Taper Lock Bushing provides a strong connection while maintaining ease of maintenance and reliability in performance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 2517X30MM8X3.3MM

Technical Specifications

• Material: Sintered Steel
• Torque Capacity: 966.66 lbf
• Large Diameter: 3.38 in
• Bore Size: 30 mm
• Bolt Circle Diameter: 3 1/4 in
• Cap Screws: 2
• Length Through Bore: 1 3/4 in
• Bushing Series: 2517
• Capscrew Size: 1/2 x 1
• Bore Type: Metric
• Wrench Torque: 430 lbf
• Keyway Size: 8 mm x 3.3 mm
• Weight: 3.08 LB
• EAN or UPC: 782475538430
