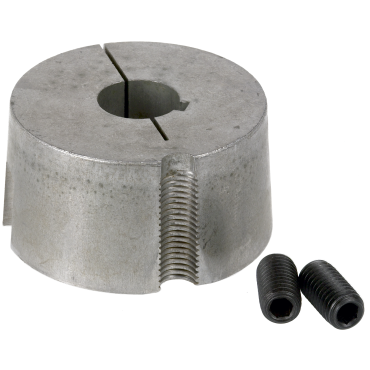

Dodge 2517X24MM8X3.3MM | Taper Lock Bushing

Product Description

The Dodge 2517X24MM8X3.3MM Taper Lock Bushing is designed for effective mounting in various machinery applications. This product provides a straightforward installation and removal process, allowing for easy adjustments and maintenance. The compact design ensures minimal protrusion, making it suitable for tight spaces.

• Easy on, easy off
• Compact design with flush mounting
• Suitable for metric bore sizes

Product Highlights

This bushing is ideal for applications requiring reliable performance and durability while maintaining a clean installation.

Product Information

Standard Information

• Brand: Dodge
• MPN: 2517X24MM8X3.3MM

Technical Specifications

• Length Through Bore: 1 3/4 in
• Capscrew Size: 1/2 x 1
• Bore Size: 24 mm
• Material: Sintered Steel
• Wrench Torque: 430 lbf
• Bushing Series: 2517
• Keyway Size: 8 mm x 3.3 mm
• Bore Type: Metric
• Large Diameter: 3.38 in
• Bolt Circle Dia.: 3 1/4 in
• Torque Capacity: 966.66 lbf
• Cap Screws: 2
• Weight: 3.21 lb
• EAN or UPC: 782475537723
