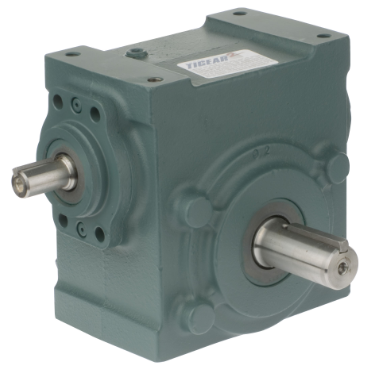

Dodge 23S15L | TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 23S15L is a TIGEAR-2 Right Angle Worm Gear Reducer. This reducer provides reliable operation for various applications. It features a cast iron housing that ensures durability and strength.

• Output configuration: Left Output
• Horsepower: 2 hp @ 1800 rpm
• Nominal ratio: 15:1

Product Highlights

This unit is ideal for general-purpose applications, providing excellent torque and efficiency.

Product Information

Standard Information

• Part Number: 23S15L
• Brand: Dodge

Technical Specifications

• Output (Shaft or Bore) Size: 1 1/8 in
• Input (Shaft or Bore) Size: 7/8 in
• Overhung Load: 1610 lbf
• Seal Type: Single-Lip Contact
• Torque Out @ 1750 rpm: 1199 in lb
• Box Dimensions: 6.76 in (Length), 5.65 in (Width), 7.38 in (Height)
• Weight: 48 lb
• Lubrication: PAG, Standard Temperature
