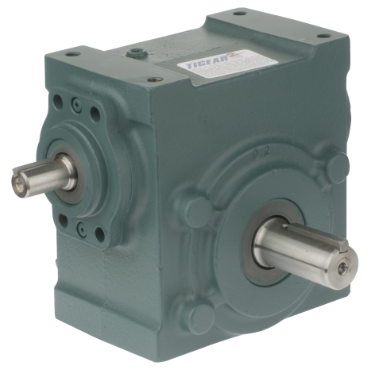

Dodge 23S15H TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

Dodge 23S15H is a TIGEAR-2 right angle worm gear reducer designed for efficient power transmission. This product is suitable for general-purpose motor applications. The robust cast iron housing ensures durability and reliability in various conditions.

• 2.31 inches center distance
• 6.62 inches bore length
• Hollow output style

Product Highlights

This gear reducer is ideal for applications that require strong performance in compact spaces. The design allows for an output speed of 117 RPM with a 1750 RPM input.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101915818

Technical Specifications

• Frame Size: Shaft Input, Not a C-Face
• Output RPM @ 1750 rpm Input: 117 rpm
• HP @ RPM: 2 hp @ 1800 rpm
• Bore Length: 6.62 inches
• Center Distance: 2.31 inches
• Input Configuration: Shaft Input
• Input HP @ RPM: 2.57 hp @ 1750 rpm
• Box Height: 7.38 inches
• Overhung Load: 1610 lbf
• Input Size: 7/8 inches
• Nominal Ratio: 15
• Input Style: Separate
• Seal Type: Single-Lip Contact
• Ratio: 15:1
• Output Style: Hollow
• Torque Out @ 1750 rpm: 1199 in lb
• Output Size: 1 7/16 inches
• Box Width: 5.65 inches
• Horsepower Output: 2.22 hp
• Motor Application: General Purpose
• Box Length: 6.76 inches
• Output Torque @ RPM: 1199 in lb @ 1750 rpm
• Lubrication: PAG, Standard Temperature
• Output Configuration: Hollow Output
• Weight: 48.0 LB
• EAN or UPC: 782475724062
