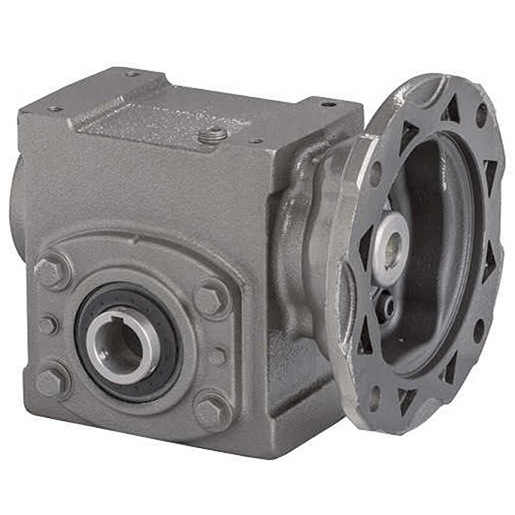

Dodge 23QZ30H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 23QZ30H56 is a TIGEAR-2 right angle worm gear reducer designed for reliable performance in various mechanical applications. This unit features a cast iron housing that provides durability and strength. The nominal ratio is 30, making it suitable for tasks that require optimal torque at a reduced speed. The hollow output allows for easy integration into existing setups and systems.

• Durable cast iron housing
• 1.11 horsepower output
• Designed for quill input style

Product Highlights

Engineered for heavy-duty use, this gear reducer supports various applications like conveyor systems, pumps, and other machinery where space constraints exist.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 102199660

Technical Specifications

• Seal Type: Two-Piece Harsh Duty
• Horsepower Output: 1.11 hp
• Output Style: Hollow
• Nominal Ratio: 30
• Bore Length: 6.62 in
• Housing Material: Cast Iron
• Input Style: Quill
• Overhung Load: 1610 lbf
• Lubrication: PAG, Standard Temperature
• Center Distance: 2.31 in
• Frame Size: 56C
• Weight: 55.0 LB
• EAN or UPC: 782476049522
