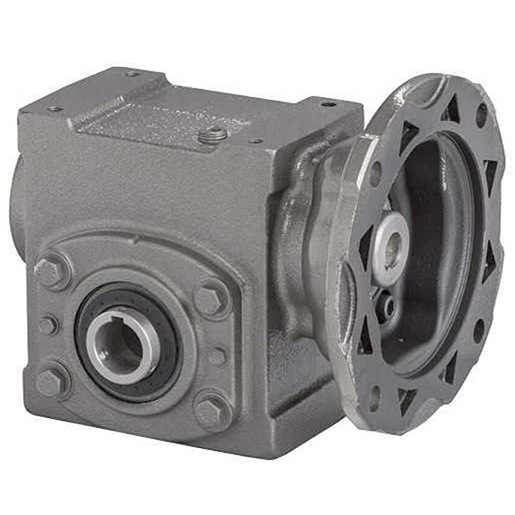

Dodge 23QZ25H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 23QZ25H56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various industrial applications. This unit features a solid cast iron housing that ensures durability and longevity in challenging environments.

• 2.31 inches center distance
• 56C frame size
• Hollow output for flexibility in different setups

Product Highlights

This reducer is ideal for applications requiring reliable power transmission. The hollow output design allows for simple coupling to various drive elements.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 102016778

Technical Specifications

• Bore Length: 6.62 inches
• Input Style: Quill
• Lubrication: PAG, Standard Temperature
• Overhung Load: 1610 lbf
• Output Style: Hollow
• Frame Size: 56C
• Horsepower Output: 1.32 hp
• Nominal Ratio: 25
• Housing Material: Cast Iron
• Center Distance: 2.31 inches
• Seal Type: Two-Piece Harsh Duty
• Weight: 55.0 LB
• EAN or UPC: 782476049478
