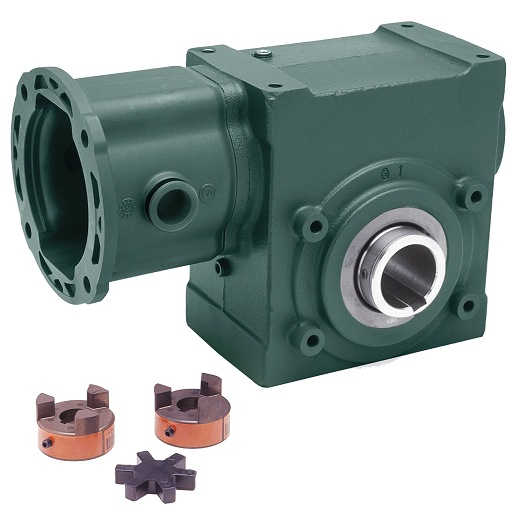

Dodge 23A25H14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 23A25H14 is a TIGEAR-2 right angle worm gear reducer designed for reliable performance in various applications. This gear reducer features a cast iron housing for added strength and durability.

• 140TC frame size
• Hollow output for optimized space utilization
• 2.31 inches center distance

Product Highlights

Suitable for general purpose motor applications, the TIGEAR-2 is efficient and designed for use in various machinery.

Product Information

Standard Information

• Brand: Dodge
• MPN: 23A25H14

Technical Specifications

• Input Size: 7/8 inches
• Bore Length: 6.62 inches
• Box Height: 7.38 inches
• Box Length: 6.76 inches
• Box Width: 5.65 inches
• Weight: 59.0 lb
• Output Torque @ RPM: 1184 in lb @ 1750 rpm
• Horsepower Output: 1.32 hp
• Motor Application: General Purpose
• Frame Size: 140TC
• Seal Type: Single-Lip Contact
• Ratio: 25:1
• Overhung Load: 1610 lbf
• Output Style: Hollow
