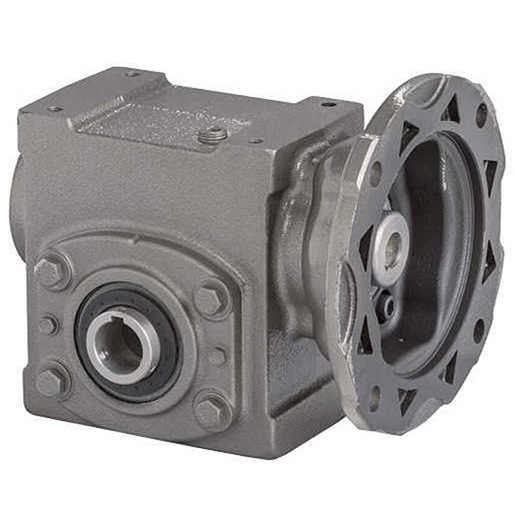

Dodge 20QZ50H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20QZ50H56 is a TIGEAR-2 right angle worm gear reducer. This unit is made for reliable speed reduction and effective torque transfer.

• 50 nominal ratio.
• Cast iron housing for durability.
• Hollow output with a bore length of five point seven inches.

Product Highlights

This reducer is built with a two-piece harsh duty seal and is suitable for washdown environments. It is designed for applications requiring high overhung load capacity and allows for efficient power transmission.

Product Information

Standard Information

• MPN: 20QZ50H56
• Brand: Dodge

Technical Specifications

• Nominal Ratio: 50
• Housing Material: Cast Iron
• Output Style: Hollow
• Center Distance: 2 inches
• Frame Size: 56C
• Overhung Load: 1560 lbf
• Horsepower Output: 0.44 hp
• Input Style: Quill
• Bore Length: 5.7 inches
• Lubrication: PAG, Standard Temperature
• Seal Type: Two-Piece Harsh Duty
• Weight: 48.0 LB
• EAN or UPC: 782476048624
