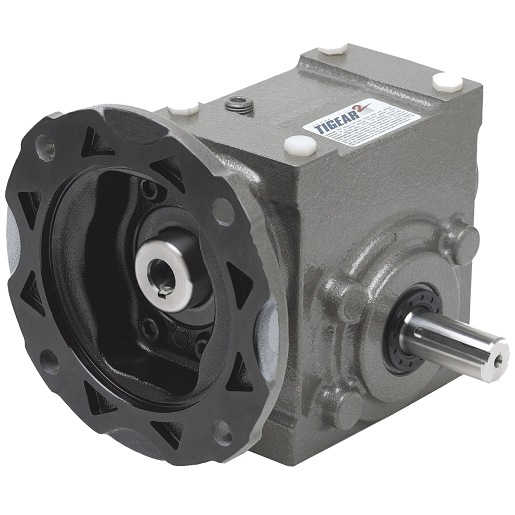

Dodge 20QZ18R56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20QZ18R56 is a TIGEAR-2 right angle worm gear reducer designed for efficient power transmission in various applications. It features a sturdy cast iron housing and a center distance of two inches. This product is suitable for both industrial and mechanical uses where reliable torque and speed adjustments are required.

• Center distance of two inches
• 56C frame size
• Right output configuration

Product Highlights

The Dodge 20QZ18R56 can handle demanding mechanical tasks due to its robust construction and effective lubrication system.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 20QZ18R56

Technical Specifications

• Center Distance: 2 inches
• Frame Size: 56C
• Housing Material: Cast Iron
• Output Shaft Diameter: 1 inch
• Lubrication: PAG, Standard Temperature
• Output Style: Right
• Horsepower Output: 1.23 hp
• Seal Type: Two-Piece Harsh Duty
• Nominal Ratio: 18
• Overhung Load: 1560 lbf
• Input Style: Quill
• Weight: 48.0 LB
• EAN or UPC: 782476048365
