Product Description

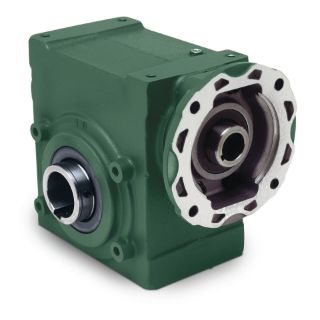

The Dodge 20Q10H14 DOD is a gear reducer designed for efficiency in various applications. This right-angle gear reducer provides reliable torque and speed adjustments.
- High nominal ratio of ten
- Constructed from durable cast iron
- Compatible with NEMA motors
Product Highlights
This gear reducer features a hollow output shaft and is suitable for diverse industrial uses.
Product Information
Standard Information
-
Manufacturer: Dodge
-
Part Number: 20Q10H14 DOD
-
Availability: Ships in 3-5 days
Technical Specifications
-
Case Size: 20
-
Bore Diameter (Output): 1.2500 inches
-
Bore Length: 5.7000 inches
-
Input Style: Quill
-
Output Shaft: Hollow
-
Rated Torque Output: 725 inch-pound
-
Horsepower Rating Input: 2.2500 horsepower
-
Thermal Horsepower Rating: 3.2500 horsepower
-
Overhung Load: 1560 pound-force
-
Center Distance: 2.0000 inches
-
Housing Material: Cast Iron
-
Mounting Bolt Pattern Width: 2.8800 inches
-
Mounting Bolt Pattern Length: 5.0000 inches
