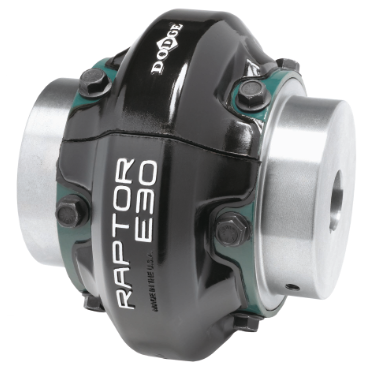

Dodge 20HSB1-1/8HUB Raptor Coupling Hubs

Product Description

The Dodge 20HSB1-1/8HUB is a Raptor Coupling Hub designed for ease of use and durability. It features a finished bore with a taper-lock design, promoting straightforward installation and removal. This product is suitable for various industrial applications that require reliable coupling solutions.

• Finished bore design for easy installation
• Reversible hubs for accommodating different shaft gaps
• Increased holding power with two setscrews

Product Highlights

The coupling provides a stable connection for machinery, and its robust design ensures longevity and high performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 112292779

Technical Specifications

• Material: Steel
• Keyway Size: 1/4 x 1/8
• Bore Type: Finished Bore
• Torque [Max]: 2,308.0 in lb
• RPM [Max]: 6,600 rpm
• Length: 2.060 in
• Size Code: 20
• Hub Diameter: 4.48 in
• Weight: 6.6 lb
• EAN or UPC: 781568804681
• Coupling Type: Two Piece
• Coupling Size: E20
