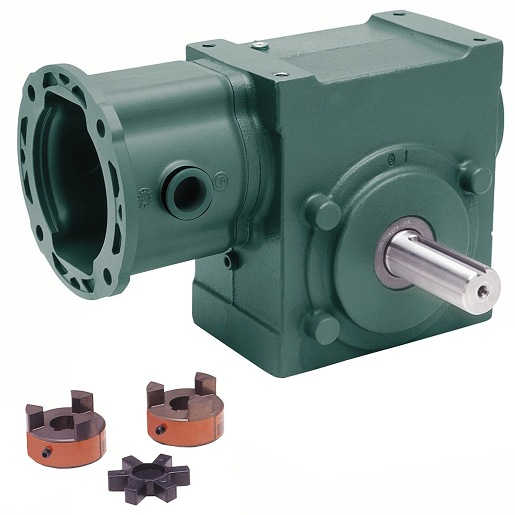

Dodge 20A30R56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A30R56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various applications in mechanical systems. This reducer features a robust design and suitable for tasks that require reliable torque transmission.

• 2 inches center distance
• 56C frame size
• Cast iron housing material

Product Highlights

This worm gear reducer is constructed from cast iron, ensuring durability and long service life. It is ideal for general-purpose applications and is compatible with various electric motor setups.

Product Information

Standard Information

• Brand: Dodge
• MPN: 20A30R56

Technical Specifications

• Output Torque @ RPM: 802 in lb @ 1750 rpm
• Overhung Load: 1560 lbf
• Output RPM @ 1750 rpm Input: 58.33 rpm
• Nominal Ratio: 30
• Torque Out @ 1750 rpm: 802 in lb
• Input HP @ RPM: 0.96 hp @ 1750 rpm
• Weight: 52.0 lb
• Frame Size: 56C
• Output Shaft Diameter: 1 in
• Input (Shaft or Bore) Size: 5/8 in
• Lubrication: PAG, Standard Temperature
• Seal Type: Single-Lip Contact
