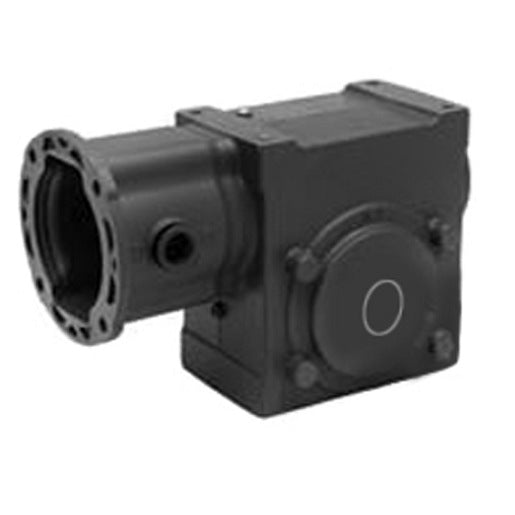

Dodge 20A30L56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A30L56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various motor applications. This reducer offers reliable performance for general use and features a cast iron housing for durability. It accommodates an input configuration of C-face coupled and features a left output configuration.

• 2 inch center distance
• Frame size 56C
• Output shaft diameter of 1 inch

Product Highlights

This product is ideal for those needing a robust reducer with significant torque handling capabilities.

Product Information

Standard Information

• Brand: Dodge
• MPN: 20A30L56

Technical Specifications

• Housing Material: Cast Iron
• Output Shaft Diameter: 1 inch
• Motor Application: General Purpose
• Box Width: 5.01 inches
• Lubrication: PAG, Standard Temperature
• HP @ RPM: 0.75 hp @ 1800 rpm
• Overhung Load: 1560 lbf
• Frame: 56C
• Output RPM @ 1750 RPM Input: 58.33 RPM
• Box Length: 6.12 inches
• Input Configuration: C-Face Coupled
• Ratio: 30:1
• Seal Type: Single-Lip Contact
• Center Distance: 2 inches
• Torque Out @ 1750 RPM: 802 in lb
• Output Torque @ RPM: 802 in lb @ 1750 RPM
• Output Configuration: Left Output
• Frame Size: 56C
• Nominal Ratio: 30
• Output Style: Left
• Input (Shaft or Bore) Size: 5/8 inch
• Box Height: 6.35 inches
• Output (Shaft or Bore) Size: 1 inch
• Output RPM @ Input RPM: 58 RPM @ 1750 RPM
• Input Style: 3-Piece Coupled
• Input HP @ RPM: 0.96 hp @ 1750 RPM
• Horsepower Output: 0.74 hp
• Weight: 52.0 LB
• EAN or UPC: 782475779406
