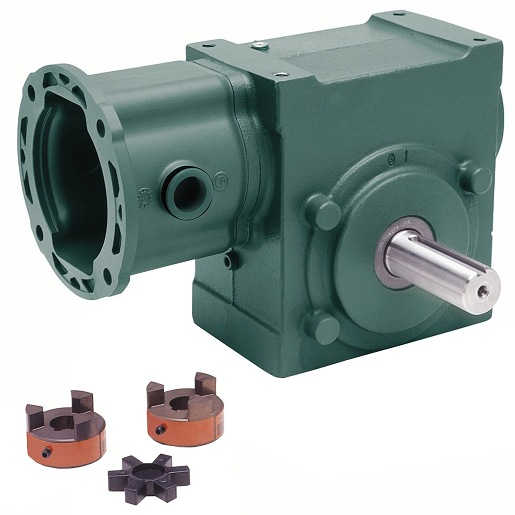

Dodge 20A20R56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A20R56 is a TIGEAR-2 right angle worm gear reducer designed for general-purpose motor applications. This reducer features a center distance of two inches and comes equipped with a cast iron housing for durability. The reducer has a nominal ratio of twenty to one, which helps optimize torque for various applications.

• General-purpose motor application
• Durable cast iron housing
• 20:1 nominal ratio

Product Highlights

This worm gear reducer is utilized in various settings where space-saving right-angle configurations are needed, such as conveyor systems and similar machinery.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 20A20R56

Technical Specifications

• Motor Application: General Purpose
• Output Torque @ RPM: 796 in lb @ 1750 rpm
• Center Distance: 2 in
• Output RPM @ 1750 rpm Input: 87.5 rpm
• Horsepower Output: 1.11 hp
• Output Configuration: Right Output
• Frame Size: 56C
• Overhung Load: 1560 lbf
• Torque Out @ 1750 rpm: 796 in lb
• Housing Material: Cast Iron
• Output Shaft Diameter: 1 in
• Input (Shaft or Bore) Size: 5/8 in
• Box Length: 6.12 in
• Box Height: 6.35 in
• Box Width: 5.01 in
• Weight: 52.0 LB
• EAN or UPC: 782475780303
