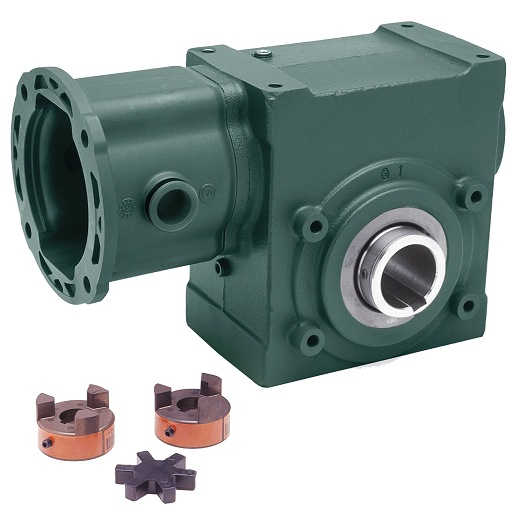

Dodge 20A20H14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A20H14 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various applications requiring reliable power transmission. This product features a robust cast iron housing and is suitable for general-purpose motor applications. The output configuration is a hollow design that allows for easy integration into existing systems.

• Center distance of two inches
• Frame size of 140TC
• Hollow output for versatile mounting options

Product Highlights

This worm gear reducer is built to handle tough conditions while ensuring operational efficiency.

Product Information

Standard Information

• Brand: Dodge
• MPN: 20A20H14

Technical Specifications

• Seal Type: Single-Lip Contact
• Box Height: 6.35 inches
• Input Style: 3-Piece Coupled
• Lubrication: PAG, Standard Temperature
• Frame Size: 140TC
• Bore Length: 5.7 inches
• Weight: 52.0 lb
• HP @ RPM: 1 hp @ 1800 rpm
• Output Torque: 796 in lb @ 1750 rpm
• Output RPM @ Input RPM: 88 rpm @ 1750 rpm
• Ratio: 20:1
