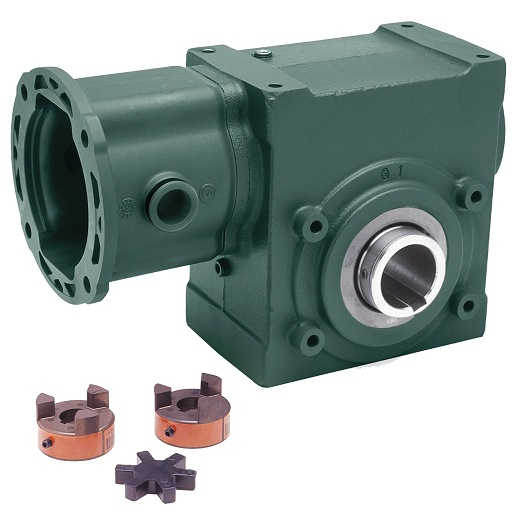

Dodge 20A15H14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A15H14 is a TIGEAR-2 Right Angle Worm Gear Reducer. This unit is designed for various mechanical applications requiring reliable power transmission.

• 2 inches center distance
• 140TC frame size
• Cast iron housing material

Product Highlights

This gear reducer offers hollow output for flexible mounting and easy modifications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101943760

Technical Specifications

• Torque Out @ 1750 rpm: 790 in lb
• HP @ RPM: 1.5 hp @ 1800 rpm
• Input HP @ RPM: 1.69 hp @ 1750 rpm
• Seal Type: Single-Lip Contact
• Housing Material: Cast Iron
• Input (Shaft or Bore) Size: 5/8 inches
• Output (Shaft or Bore) Size: 1 1/4 inches
• Box Width: 5.01 inches
• Output Configuration: Hollow Output
• Input Configuration: C-Face Coupled
• Ratio: 15:1
• Bore Length: 5.7 inches
• Overhung Load: 1560 lbf
• Weight: 52.0 LB
• EAN or UPC: 782475778362
