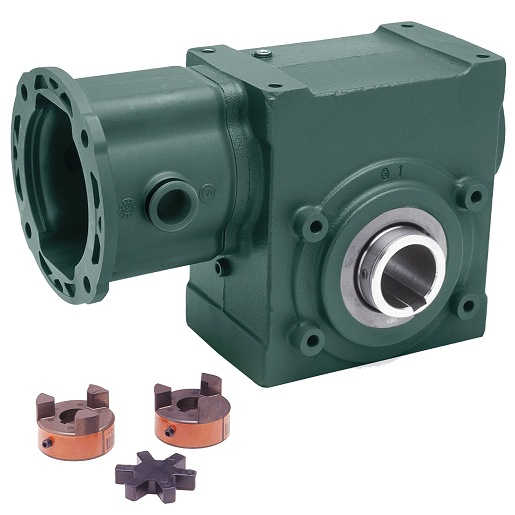

Dodge 20A10H56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A10H56 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various industrial applications. Built with a cast iron housing, this gear reducer features a two-inch center distance and a 56C frame size. The hollow output style allows for easy integration with existing machinery.

• Center distance of two inches
• 56C frame size
• Hollow output design

Product Highlights

The Dodge 20A10H56 stands out due to its strong construction and reliable performance. It meets the demands of general purpose motor applications and features a nominal ratio of 10.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101899685

Technical Specifications

• Overhung Load: 1560 lbf
• Input HP @ RPM: 2.25 hp @ 1750 rpm
• Horsepower Output: 2.01 hp
• Output Torque @ RPM: 725 in lb @ 1750 rpm
• Nominal Ratio: 10
• Frame Size: 56C
• Input Configuration: C-Face Coupled
• Box Height: 6.35 in
• Box Width: 5.01 in
• Output Style: Hollow
• Bore Length: 5.7 in
• Lubrication: PAG, Standard Temperature
• Seal Type: Single-Lip Contact
• Weight: 52.0 LB
