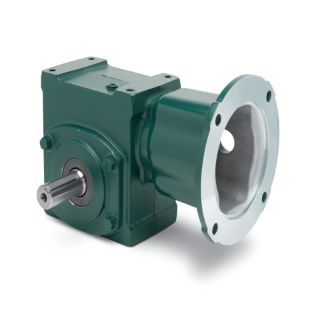

Dodge 20A07L14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 20A07L14 is a TIGEAR-2 right angle worm gear reducer designed for reliable performance in various applications. This product features a center distance of two inches and is constructed with a robust cast iron housing. The unit is optimized for general-purpose motor applications and includes a left output configuration for versatile installation options.

• Center distance of 2 inches
• 140TC frame size
• Cast iron housing for durability

Product Highlights

This worm gear reducer provides efficient torque transfer and exceptional durability, making it suitable for a wide range of industrial settings.

Product Information

Standard Information

• Brand: Dodge
• MPN: 20A07L14

Technical Specifications

• Output Torque @ RPM: 678 in lb @ 1750 rpm
• Box Height: 6.35 in
• Box Length: 6.12 in
• Box Width: 5.01 in
• Output RPM @ 1750 rpm Input: 233.33 rpm
• Horsepower Output: 2.54 hp
• Input Configuration: C-Face Coupled
• Output Configuration: Left Output
