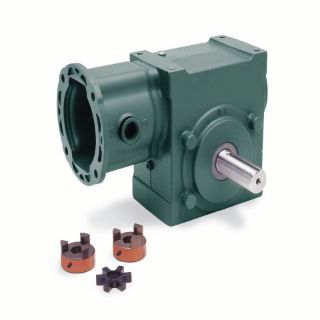

Dodge 202A05R14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 202A05R14 is a standard worm gear reducer designed for reliable performance in various mechanical applications. This worm gear reducer features a right output style, and it is compatible with NEMA motors used in the 140TC frame. It is suitable for applications requiring a robust and efficient speed reduction solution.

• Center distance measures two inches
• Cast iron housing material for durability
• Nominal ratio of five

Product Highlights

The TIGEAR-2 right angle worm gear reducer is ideal for use in washdown environments. It offers effective torque transmission and is built to handle demanding loads.

Product Information

Standard Information

• MPN: 202A05R14
• Brand: Dodge

Technical Specifications

• Overhung Load: 1380 lbf
• Lubrication: PAG, Standard Temperature
• Frame Size: 140TC
• Seal Type: Single-Lip Contact
• Center Distance: 2 inches
• Horsepower Output: 3.23 hp
• Output Style: Right
• Output Shaft Diameter: 1 inch
• Weight: 55.0 lb
