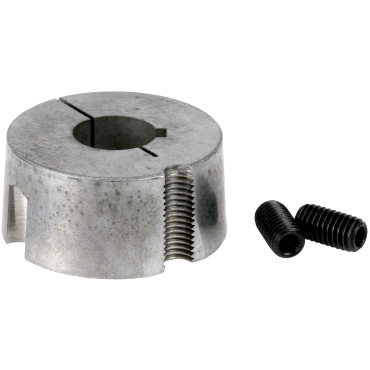

Dodge 2012X42MM12X3.3MM Taper Lock Bushing

Product Description

The Dodge 2012X42MM12X3.3MM Taper Lock Bushing is a key component designed for efficient power transmission. It features a bore size of forty-two millimeters and utilizes a metric bore type for precise fitment. The bushing offers easy installation and removal, making it suitable for various applications.

• Easy to install and remove
• Compact design for space-saving installation
• Flush mounting without protruding parts

Product Highlights

This taper lock bushing is designed for robust use in industrial settings where reliability and efficiency are critical.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791831

Technical Specifications

• Keyway Size: 12 mm x 3.3 mm
• Material: Sintered Steel
• Torque Capacity: 595.83 lbf
• Bore Size: 42 mm
• Large Diameter: 2 3/4 in
• Capscrew Size: 7/16 x 7/8
• Wrench Torque: 23.3 lbf
• Bushing Series: 2012
• Bolt Circle Diameter: 2 5/8 in
• Cap Screws: 2
• Length Through Bore: 1 1/4 in
• Bore Type: Metric
• Weight: 1.03 lb
• EAN or UPC: 782475530564
