Dodge 2012X38MM10X3.3MM Taper Lock Bushing

Product Description

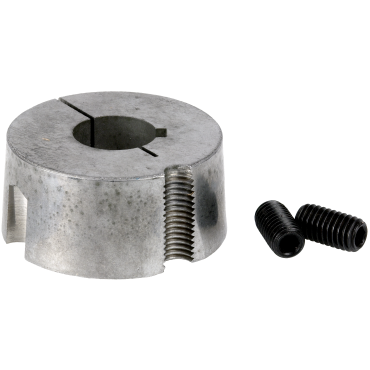

The Dodge 2012X38MM10X3.3MM Taper Lock Bushing is part of the series 2012, designed for easy installation and removal. This product features a clean, compact design suitable for various applications. It provides a flush mounting, eliminating any protruding parts that may interfere with operation.

• Easy on, easy off
• Compact design for space-saving
• Flush mounting for seamless installation

Product Highlights

This bushing is a key component used in drive systems, where reliable performance and ease of maintenance are essential. It is perfect for applications ranging from industrial machinery to general engineering tasks.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944675

Technical Specifications

• Material: Sintered Steel
• Bore Size: 38 mm
• Large Diameter: 2 3/4 inches
• Weight: 1.16 lb
• Bolt Circle Diameter: 2 5/8 inches
• Length Through Bore: 1 1/4 inches
• Wrench Torque: 23.3 lbf
• Torque Capacity: 595.83 lbf
• Keyway Size: 10 mm x 3.3 mm
• Capscrew Size: 7/16 x 7/8
• Cap Screws: 2
• Bushing Series: 2012
• Bore Type: Metric
