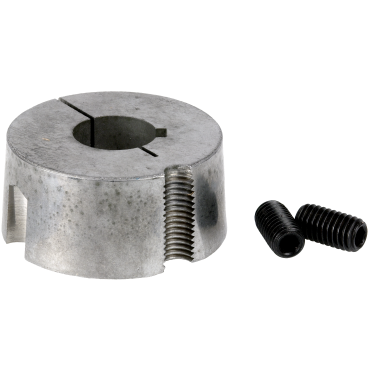

Dodge 2012X35MM10X3.3MM | Taper Lock Bushing | 35 mm

Product Description

The Dodge 2012X35MM10X3.3MM is a taper lock bushing designed for precise alignment and support for rotary shaft applications. It features a bore size of thirty-five millimeters and is made from sintered steel, ensuring durability and reliability.

• Designed for metric bore applications
• Flush mounting with no protruding parts
• Easy to install and remove

Product Highlights

Well-suited for various industrial machinery applications, this taper lock bushing provides secure mounting and effective torque transmission.

Product Information

Standard Information

• Brand: Dodge
• MPN: 2012X35MM10X3.3MM

Technical Specifications

• Length Through Bore: 1.25 inches
• Bore Type: Metric
• Wrench Torque: 23.3 lbf
• Cap Screws: 2
• Material: Sintered Steel
• Bolt Circle Diameter: 2.625 inches
• Capscrew Size: 7/16 x 7/8
• Keyway Size: 10 mm x 3.3 mm
• Bushing Series: 2012
• Bore Size: 35 mm
• Torque Capacity: 595.83 lbf
• Large Diameter: 2.75 inches
• Weight: 1.23 lb
• EAN or UPC: 782475538409
