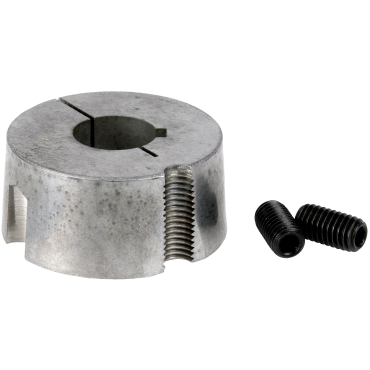

Dodge 2012X32MM10X3.3MM Taper Lock Bushing

Product Description

The Dodge 2012X32MM10X3.3MM Taper Lock Bushing is designed for reliable and efficient machinery operation. This item features a bore size of thirty-two millimeters and a keyway size of ten millimeters by three-point-three millimeters. It ensures easy installation and removal with a clean design that allows for flush mounting.

• Easy on, easy off
• Clean, compact design
• Flush mounting

Product Highlights

Works well in various industrial applications, providing secure and stable connections between components.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791839

Technical Specifications

• Bushing Series: 2012
• Bore Size: 32 mm
• Keyway Size: 10 mm x 3.3 mm
• Torque Capacity: 595.83 lbf
• Material: Sintered Steel
• Length Through Bore: 1.25 in
• Large Diameter: 2.75 in
• Cap Screws: 2
• Bolt Circle Diameter: 2.625 in
• Bore Type: Metric
• Wrench Torque: 23.3 lbf
• Cap Screw Size: 7/16 x 7/8
• Weight: 1.3 LB
• EAN or UPC: 782475538355
