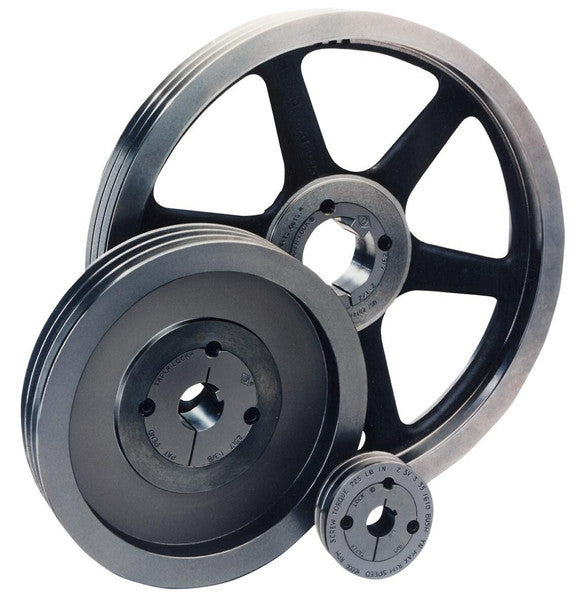

Dodge 2-3V6.0-1610 SHEAVE - V-Belt Pulley - 3V Belt Section - 2 Groove - 5.95 in Pitch Dia.

Product Description

The Dodge 2-3V6.0-1610 SHEAVE is a V-belt pulley suitable for various mechanical power transmission applications. It is compatible with a 3V belt section and features two grooves. The pitch diameter measures five point ninety-five inches, while the overall diameter is six inches. It utilizes a taper lock bushing and is constructed from durable cast iron. This product is ideal for isolation of shock loads and vibration in machinery.

• Effective in misalignment situations
• Low maintenance with no lubrication needed
• Efficiency rate of ninety-five percent

Product Highlights

This V-belt pulley allows for drive ratios of six to one or higher, minimizing operating noise. The taper lock bushing enhances reliability in various applications.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Weight: 6.8 lbs
• Outside Diameter: 6.0000 in
• Pitch Diameter: 5.95 in
• Number Of Grooves: 2
• Bushing Series: 1610
• Face Width: 1.0938 in
• Bushing Bore Range: 1/2 to 1-11/16 in
• Length Through Bore: 1.0000 in
