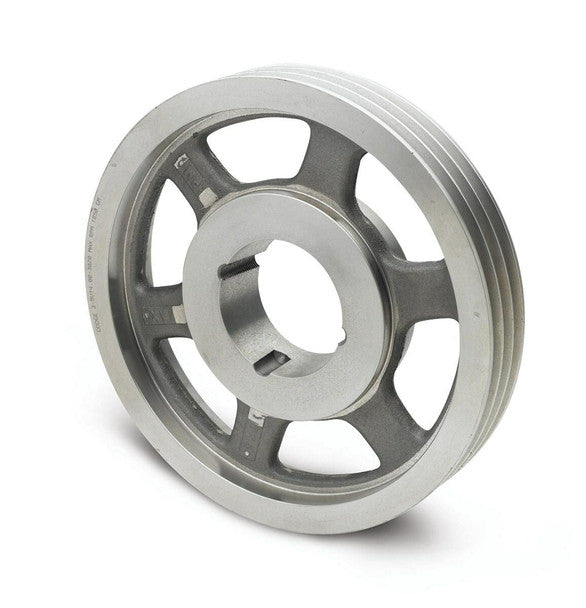

Dodge 1B9.4-2517 SHEAVE - 118305 Bushing Bore V-Belt Pulley - A, B Belt Section - 2517 Series Bushing

Product Description

The Dodge 1B9.4-2517 SHEAVE is a V-belt pulley designed for effective power transmission. With a tapered lock bushing, this sheave isolates shock loads and vibration. It is built to handle misalignments and requires no lubrication for maintenance.

• Features a pitch diameter of 9.38 inches (A) and 9.76 inches (B)
• Cast iron material for durability
• Capacity for bore sizes ranging from one-half to two and eleven-sixteenths inches

Product Highlights

This sheave operates quietly and efficiently, achieving a typical efficiency of ninety-five percent. Ideal for various applications in mechanical power transmission.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Weight: 13.63 lbs
• Material: Cast Iron
• Bore Type: Taper Lock Bushed
• Face Width: 1.0500 in
• Keyway Size: 1/2 x 1/4, 1/4 x 1/8, 1/8 x 1/16, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 5/8 x 5/16 in
• Overall Width: 1.8 in
• Bushing Series: 2517
• Pitch Diameter: 9.38 (A) in, 9.76 (B) in
• Outside Diameter: 9.7500 in
• Belt Section Size: B, A
• Number Of Grooves: 1
• Bushing Bore Range: 1/2 to 2-11/16 in
• Length Through Bore: 1.7500 in
• Pulley Construction: Plain
