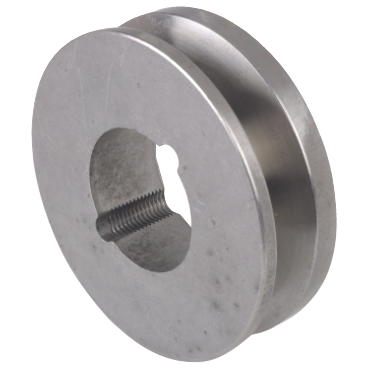

Dodge 1A5.8B6.21610 Taperlock Sheave for A & B Belts

Product Description

The Dodge 1A5.8B6.21610 is a Taperlock sheave designed for A and B belts. It features a one groove design and operates with a bushing series of 1610. This sheave is suitable for applications requiring a reliable and durable drive system.

• 1 groove design suitable for A (4L) or B (5L) belts
• Outside diameter of six point five five inches
• Bore size range from half inch to one and five eighths inches

Product Highlights

This sheave effectively isolates shock loads and vibrations, allowing for minor misalignment. No lubrication is necessary for operation, enhancing convenience and reliability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944493

Technical Specifications

• Bushing Series: 1610
• Belt Match: 1
• B (5L) Pitch Diameter: 6.2 inches
• Bushing Type: Taperlock
• Outside Diameter: 6.55 inches
• Number of Grooves: 1
• Type: A1
• Length Through Bore: 1 inch
• Inch/Metric: Inch
• Belt Size: A, B, 4L, 5L
• Bore Range Minimum: 0.5 inches
• Overall Length: 1 inch
• Bore Range Maximum: 1.6875 inches
• Weight: 6.63 lbs
• EAN or UPC: 782475095070
