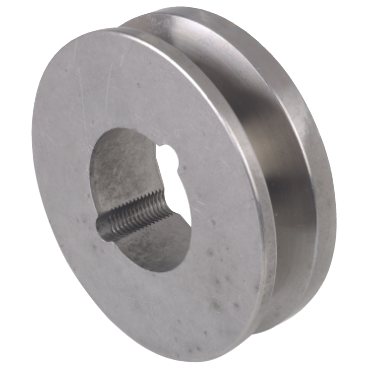

Dodge 1A5.0B5.41610 Taperlock Sheave for A & B Belts

Product Description

The Dodge Taperlock Sheave, MPN 1A5.0B5.41610, is designed for use with A and B belts. This sheave effectively isolates shock loads and can handle minor misalignment. Its robust design requires no lubrication and operates quietly. Constructed from gray iron, it ensures durability and reliable performance in various applications.

• Compatible with A (4L) or B (5L) belt sizes
• Includes a bushing series of 1610 and supports a bore range from one-half inch to one and eleven-sixteenth inches
• Outside diameter measures five and three-quarters inches

Product Highlights

This sheave is ideal for power transmission systems that require efficient performance without lubrication.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944489

Technical Specifications

• Type: A1
• Length Through Bore: 1 inch
• Bore Range [Min]: 0.5 inches
• Overall Length: 1.16 inches
• E (Knuckle Width): 0.11 inches
• Outside Diameter: 5.75 inches
• Bushing Type: Taperlock
• No. of Grooves: 1
• M: 0.04 inches
• Belt Size: A, B, 4L, 5L
• Inch/Metric: Inch
• Bore Range [Max]: 1.6875 inches
• Belt Match: 1
• Bushing Series: 1610
• B (5L) Pitch Diameter: 5.4 inches
• Weight: 5.23 LB
• EAN or UPC: 782475095032
