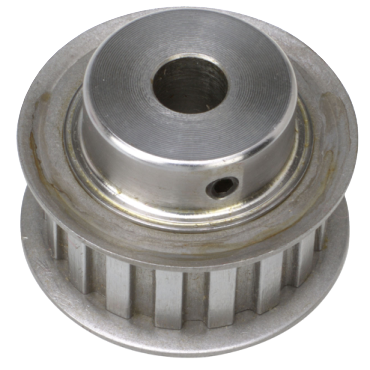

Dodge 18XL037MPB Reborable Timing Pulley

Product Description

Dodge 18XL037MPB is a reborable timing pulley designed for various applications including agitators, compressors, and conveyors. It features a pitch of one-fifth with an XL belt size, suitable for belts with widths of three-eighths or one-quarter inches. This pulley has eighteen teeth and a pitch diameter of one point one four six inches. It provides a minimum bore of one-quarter inch and a maximum bore of one-half inch.

• Designed for a range of applications
• Requires no lubrication for maintenance
• Offers constant speed with minimal backlash

Product Highlights

This timing pulley is ideal for applications in varied machinery and industry sectors. Its design allows for smooth operation and durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946210

Technical Specifications

• Length Through Bore: 0.78 inches
• Belt Width: 0.375 inches, 0.25 inches
• No. of Teeth: 18
• Bore Type: Reborable
• Bore Range [Max]: 0.5 inches
• Type: DF-1
• Bore Range [Min]: 0.25 inches
• Hub Projection: 0.25 inches
• Belt Size: XL
• Pitch Diameter: 1.146 inches
• Hub Dia.: 0.81 inches
• Bushing Type: None
• Weight: 0.2 pounds
• EAN or UPC: 782475087761
