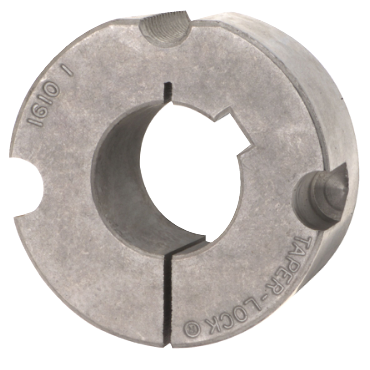

Dodge 1610X40MM12X3.3MM | Taper Lock Bushing

Product Description

The Dodge 1610X40MM12X3.3MM Taper Lock Bushing features a forty millimeter bore. This bushing is designed for ease of use and quick installation. It allows for smooth mounting with no parts that protrude. This makes it suitable for various applications where space is limited.

• Easy to install and remove
• Compact design for efficient use of space
• Flush mounting eliminates protruding parts

Product Highlights

This bushing is ideal for applications requiring reliable locking mechanisms. It is made from sintered steel for durability.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100944655

Technical Specifications

• Bushing Series: 1610
• Bore Size: 40 mm
• Length Through Bore: 1 inch
• Capscrew Size: 3/8 x 5/8
• Bolt Circle Diameter: 2 1/8 inches
• Bore Type: Metric
• Wrench Torque: 15 lbf
• Torque Capacity: 358.333 lbf
• Large Diameter: 2 1/4 inches
• Cap Screws: 2
• Keyway Size: 12 mm x 3.3 mm
• Material: Sintered Steel
• Weight: 0.42 LB
• EAN or UPC: 782475530830
