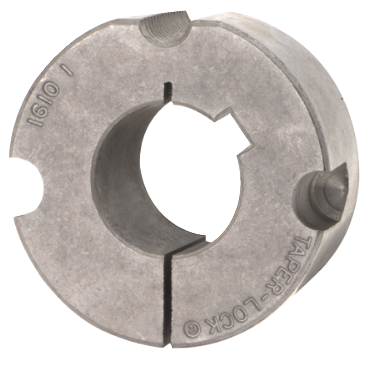

Dodge 1610X35MM10X3.3MM | Taper Lock Bushing | 35 mm Bore

Product Description

The Dodge 1610X35MM10X3.3MM Taper Lock Bushing is designed for easy installation and removal. This bushing is ideal for various applications requiring a secure fit in drive systems. Its compact design allows for flush mounting, creating a neat assembly without protruding parts.

• Easy on, easy off
• Clean, compact design
• Flush mounting - no protruding parts

Product Highlights

This bushing is suitable for metric bores and features a sintered steel construction, ensuring durability and reliability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 1610X35MM10X3.3MM

Technical Specifications

• Capscrew Size: 3/8 x 5/8
• Material: Sintered Steel
• Keyway Size: 10 mm x 3.3 mm
• Bore Type: Metric
• Cap Screws: 2
• Wrench Torque: 15 lbf
• Length Through Bore: 1 inch
• Bore Size: 35 mm
• Torque Capacity: 358.333 lbf
• Large Diameter: 2 1/4 inches
• Bushing Series: 1610
• Bolt Circle Diameter: 2 1/8 inches
• Weight: 0.54 lb
• EAN or UPC: 782475538195
