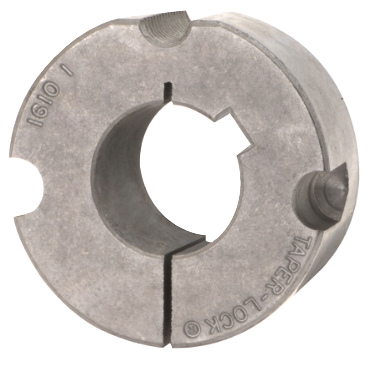

Dodge 1610X32MM10X3.3MM | Taper Lock Bushing

Product Description

The Dodge 1610X32MM10X3.3MM is a taper lock bushing designed for a thirty-two millimeter bore. It offers an easy installation process with a clean design that allows for flush mounting without protruding parts.

• Easy on, easy off
• Clean compact design
• Flush mounting - no protruding parts

Product Highlights

This taper lock bushing is suitable for various applications where a secure fit is necessary for mechanical components. It helps in the easy attachment of shafts to pulleys or sprockets.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1610X32MM10X3.3MM

Technical Specifications

• Bore Size: 32 mm
• Bore Type: Metric
• Keyway Size: 10 mm x 3.3 mm
• Bolt Circle Diameter: 2 1/8 in
• Large Diameter: 2 1/4 in
• Material: Sintered Steel
• Length Through Bore: 1 in
• Wrench Torque: 15 lbf
• Cap Screws: 2
• Torque Capacity: 358.333 lbf
• Bushing Series: 1610
• Capscrew Size: 3/8 x 5/8
• Weight: 0.6 LB
• EAN or UPC: 782475537860
