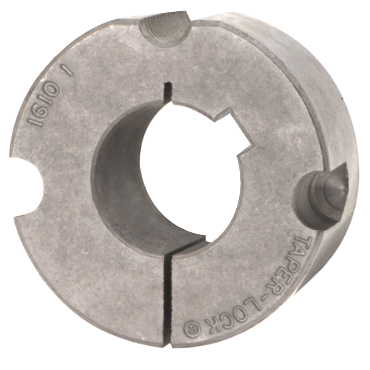

Dodge 1610X24MM8X3.3MM Taper Lock Bushing

Product Description

The Dodge 1610X24MM8X3.3MM Taper Lock Bushing is designed for efficient mounting in machinery and belt drives. This bushing allows for easy installation and removal, making it ideal for maintenance and service tasks.

• Compatible for 24 mm bore applications
• Offers a torque capacity of 358.333 lbf
• Constructed from durable sintered steel

Product Highlights

Designed for secure fitting in various industrial setups, the Dodge Taper Lock Bushing reduces downtime during service and extends longevity.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 1610X24MM8X3.3MM

Technical Specifications

• Bore Size: 24 mm
• Bushing Series: 1610
• Torque Capacity: 358.333 lbf
• Keyway Size: 8 mm x 3.3 mm
• Cap Screws: 2
• Length Through Bore: 1 inch
• Bolt Circle Diameter: 2 1/8 inches
• Material: Sintered Steel
• Capscrew Size: 3/8 x 5/8
• Large Diameter: 2 1/4 inches
• Bore Type: Metric
• Wrench Torque: 15 lbf
• Weight: 0.73 lb
• EAN or UPC: 782475538416
