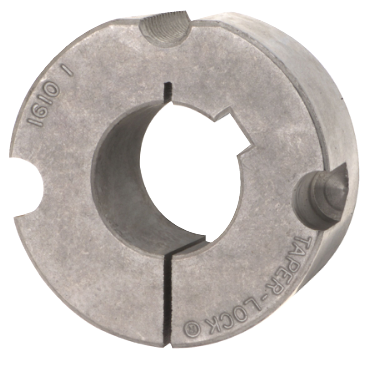

Dodge 1610X19MM6X2.8MM Taper Lock Bushing

Product Description

The Dodge 1610X19MM6X2.8MM Taper Lock Bushing is designed for reliable performance in various applications.

• Easy installation and removal process
• Compact design for minimal space requirements
• No exposed parts for a flush mount

Product Highlights

This bushing is suitable for metric bore sizes and has a solid construction for optimal torque capacity.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1610X19MM6X2.8MM

Technical Specifications

• Length Through Bore: 1 inch
• Keyway Size: 6 mm x 2.8 mm
• Large Diameter: 2 1/4 inches
• Capscrew Size: 3/8 x 5/8 inches
• Material: Sintered Steel
• Bolt Circle Diameter: 2 1/8 inches
• Cap Screws: 2
• Torque Capacity: 358.333 lbf
• Bushing Series: 1610
• Bore Size: 19 mm
• Bore Type: Metric
• Wrench Torque: 15 lbf
• Weight: 0.8 lb
• EAN or UPC: 782475716715
