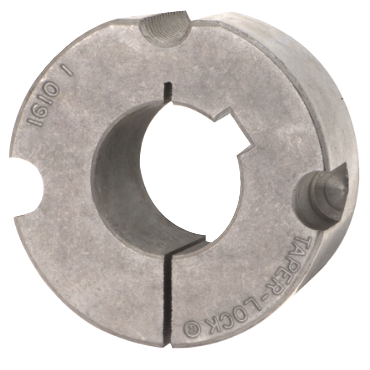

Dodge 1610X16MM5X2.3MM Taper Lock Bushing

Product Description

The Dodge 1610X16MM5X2.3MM Taper Lock Bushing is designed for secure and efficient coupling in various applications. This bushing offers a reliable solution for fixed bore connections.

• Features easy installation and removal.
• Compact design allows for flush mounting.
• Constructed with sintered steel for durability.

Product Highlights

Suitable for use in electric motors and drives, this bushing provides strong torque transfer while minimizing backlash.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 1610X16MM5X2.3MM

Technical Specifications

• Bolt Circle Diameter: 2 1/8 inches
• Length Through Bore: 1 inch
• Large Diameter: 2 1/4 inches
• Bore Size: 16 mm
• Keyway Size: 5 mm x 2.3 mm
• Wrench Torque: 15 lbf
• Capscrew Size: 3/8 x 5/8
• Torque Capacity: 358.333 lbf
• Material: Sintered Steel
• Cap Screws: 2
• Bushing Series: 1610
• Bore Type: Metric
• Weight: 0.829 LB
• EAN or UPC: 782475884452
