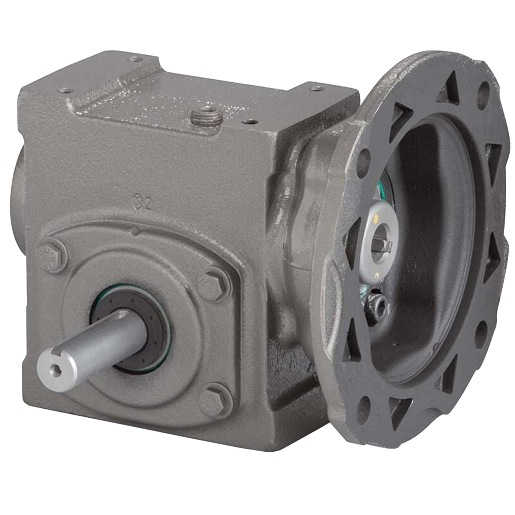

Dodge 15QZ25L56 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 15QZ25L56 is a TIGEAR-2 right angle worm gear reducer designed for reliable operation in various applications. This gearbox features a left output style and is constructed with durable cast iron housing to withstand harsh conditions.

• 1.5 inch center distance
• 56C frame size
• Output shaft diameter of 0.75 inch

Product Highlights

This reducer provides efficient torque transmission and is suitable for industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 102196126

Technical Specifications

• Output Style: Left
• Component Type: Gearbox
• Frame Size: 56C
• Output Shaft Diameter: 0.75 inch
• Overhung Load: 710 lbf
• Center Distance: 1.5 inch
• Seal Type: Two-Piece Harsh Duty
• Housing Material: Cast Iron
• Horsepower Output: 0.46 hp
• Lubrication: PAG, Standard Temperature
• Input Style: Quill
• Nominal Ratio: 25
• Weight: 39.0 LB
• EAN or UPC: 782476047108
