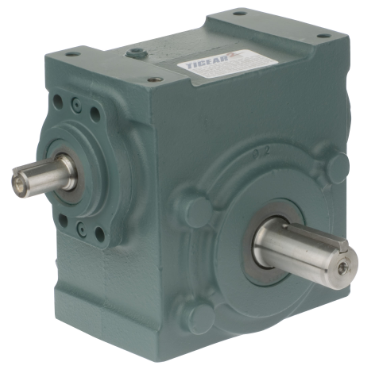

Dodge 13S40L TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 13S40L is a TIGEAR-2 right angle worm gear reducer designed for various industrial applications. This gearbox ensures reliable performance and is suitable for general purpose motor applications.

• Nominal Ratio 40:1
• Cast Iron housing material for durability
• Left output configuration

Product Highlights

The Dodge TIGEAR-2 right angle worm gear reducer is built for efficiency and longevity.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101943745

Technical Specifications

• Nominal Ratio: 40
• Input HP @ RPM: 0.32 hp @ 1750 rpm
• Output Shaft Diameter: 0.625 in
• Motor Application: General Purpose
• Horsepower Output: 0.22 hp
• Seal Type: Single-Lip Contact
• Component Type: Gearbox
• Output RPM @ Input RPM: 44 rpm @ 1750 rpm
• Center Distance: 1.33 in
• Input Configuration: Shaft Input
• Box Length: 4.24 in
• Box Height: 4 7/8 in
• Box Width: 4.1 in
• Weight: 36.0 LB
• Lubrication: PAG, Standard Temperature
• Output Configuration: Left Output
• Output (Shaft or Bore) Size: 5/8 in
• Input (Shaft or Bore) Size: 1/2 in
