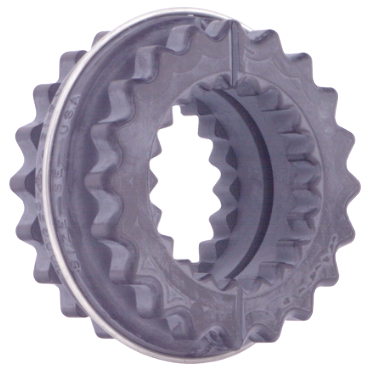

Dodge 13EELEMENT | D-Flex Coupling Insert | Size 13 | Replacement MPN

Product Description

The Dodge 13EELEMENT is a D-Flex Coupling Insert designed for effective power transmission and vibration dampening. It is ideal for various industrial applications where coupling reliability is crucial.

• Interchangeable components streamline the installation process.
• Snug fit without requiring lubrication.
• No metal-to-metal contact ensures reduced wear and silent operation.

Product Highlights

This coupler features rounded edges for full tooth engagement and even load distribution.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943181

Technical Specifications

• Torque Rating [Max]: 11,350 in lb
• Coupling Size: 13
• Material: EPDM
• Temperature Range [Max]: 275 °F
• Outside Diameter: 11.1875 in
• HP @ RPM: 324 hp @ 1800 rpm
• Sleeve Type: E
• Insert Style: Two Piece
• RPM [Max]: 2,400 rpm
• Color: Black
• Width: 5.5 in
• Torsional Stiffness (Inch Pounds/Radian): 3350
• Temperature Range [Min]: -30 °F
• Weight: 14.29 lb
• EAN or UPC: 782475873609
