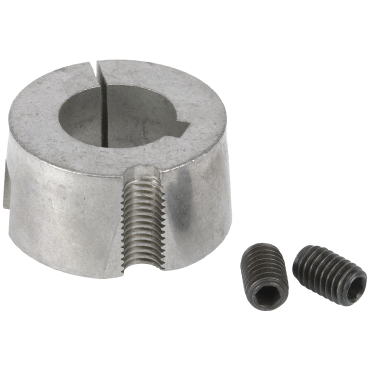

Dodge 1310X9/16KW Taper Lock Bushing - 0.5625 in Bore

Product Description

The Dodge Taper Lock Bushing 1310X9/16KW is designed for easy installation and removal. It features a bore size of 0.5625 inches, suitable for various applications in mechanical power transmission. The compact design allows for flush mounting without protruding parts.

• Easy on, easy off design
• Made from sintered steel for durability
• Flush mounting structure

Product Highlights

This bushing provides a reliable connection and is easy to work with, making it ideal for use in machinery and equipment.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1310X9/16KW

Technical Specifications

• Length Through Bore: 1 inch
• Torque Capacity: 320.83 lbf
• Keyway Size: 1/8 x 1/16 inches
• Material: Sintered Steel
• Bore Type: Inch
• Wrench Torque: 15 lbf
• Bushing Series: 1310
• Bore Size: 0.5625 inches
• Large Diameter: 2 inches
• Bolt Circle Diameter: 1 7/8 inches
• Capscrew Size: 3/8 x 5/8 inches
• Cap Screws: 2
• Weight: 0.7 lbs
• EAN or UPC: 782475097739
