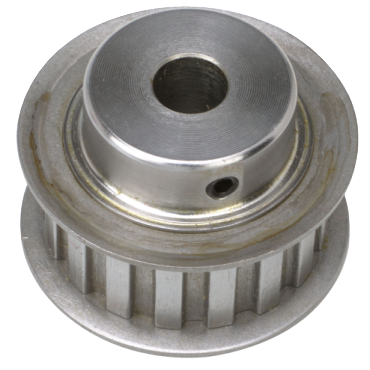

Dodge 12L050MPB Reborable Timing Pulley

Product Description

The Dodge 12L050MPB is a reborable timing pulley designed for various applications. This pulley features a pitch of three-eighths of an inch and is compatible with L belt sizes. It has twelve teeth and a pitch diameter of one point four three two inches. The minimum bore size is three-eighths of an inch, while the maximum bore size is three-quarters of an inch.

• Compatible with agitators, mixers, and conveyors
• Requires no lubrication
• Features a nonslip design for consistent performance

Product Highlights

Use this timing pulley in machinery requiring constant speed and minimum backlash.

Product Information

Standard Information

• Brand: Dodge
• MPN: 12L050MPB

Technical Specifications

• Type: DF-1
• Bore Range [Max]: 0.75 inches
• Bore Range [Min]: 0.375 inches
• Length Through Bore: 1.25 inches
• Belt Width: 0.5 inches
• Belt Size: L
• Pitch Diameter: 1.432 inches
• Belt Pitch: 0.375 inches
• No. of Teeth: 12
• Outside Diameter: 1.402 inches
• Hub Diameter: 1.06 inches
• Hub Projection: 0.5 inches
• Weight: 0.38 LB
• EAN or UPC: 782475087921
