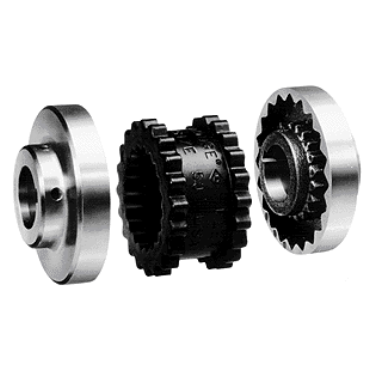

Dodge 12BFLANGE 12B FLANGE | D-FLEX Coupling

Product Description

The Dodge 12BFLANGE is a coupling flange designed for use with the D-FLEX coupling system. This component allows for easy installation and secure connections in various applications. It is suitable for environments where efficiency and reliable performance are essential.

• Interchangeable components for quick installation
• No lubrication necessary, reducing maintenance
• Designed for a snug fit with no metal-to-metal contact

Product Highlights

This coupling flange features a cast iron construction, ensuring durability and strength. Its design supports quiet operation and efficient power transfer in machinery.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 12BFLANGE

Technical Specifications

• Bushing Series: E
• Material: Cast Iron
• Bore Range [Max]: 3.5 inches
• Coupling Size: 12B
• Length: 2.75 inches
• Bore Type: QD Bushing
• Input Bore Range: 7/8 inches to 3.5 inches
• Bushing Type: QD
• RPM [Max]: 2,800 rpm
• Outside Diameter: 10 inches
• Weight: 16.25 pounds
• EAN or UPC: 782475872893
