Dodge 124205 DOD Flange Units Ball Bearings 1.5200 Bore Length

Product Description

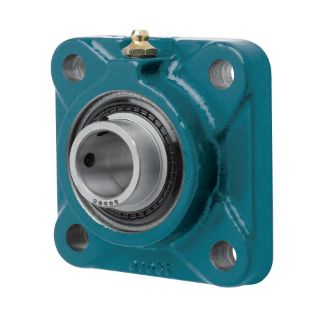

The Dodge 124205 is a Flange Unit Ball Bearing specifically designed for various industrial applications. It features a housing type of Four-Bolt Flange and accommodates a shaft diameter of one point one eight seven five inches. This bearing is part of the 206 series, known for its reliability in performance.

• Grease lubrication ensures effective operation.
• Single-Lip Contact seal type for improved protection against contaminants.
• Supports a maximum speed of four thousand five hundred RPM.

Product Highlights

This product is efficient for applications requiring a fixed non-expansion bearing, suitable for heavy loads and minimal maintenance.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 124205 DOD

Technical Specifications

• Bore Length: 1.5200 inches
• Bearing Type: Ball
• Bolt Diameter: 0.4375 inches
• Shaft Diameter: 1.1875 inches
• Maximum Speed: 4500 RPM
• Housing Material: Cast Iron
• Insert Material: Steel
• Grease Name: Unirex N2
