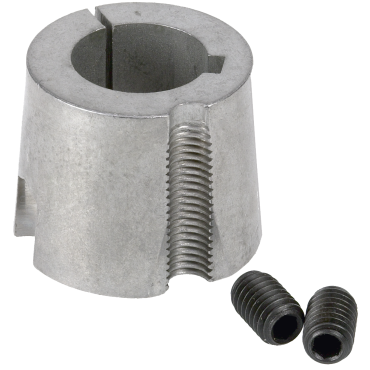

Dodge 1215X9/16KW Taper Lock Bushing

Product Description

The Dodge 1215X9/16KW Taper Lock Bushing is designed for efficient and secure mounting in various applications. This product features an easy installation and removal process due to its design. It is suitable for industrial machinery where reliability is essential.

• Easy on, easy off
• Compact design for flush mounting
• Suitable for various bore sizes

Product Highlights

Specially created for a clean and efficient fit, the Taper Lock Bushing can adapt to different setups seamlessly.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 1215X9/16KW

Technical Specifications

• Length Through Bore: 1.5 inches
• Keyway Size: 1/8 x 1/16 inches
• Wrench Torque: 175 lbf
• Bore Type: Inch
• Bolt Circle Diameter: 1.75 inches
• Capscrew Size: 3/8 x 5/8 inches
• Cap Screws: 2
• Torque Capacity: 3550 lbf
• Bore Size: 0.5625 inches
• Material: Sintered Steel
• Bushing Series: 1215
• Large Diameter: 1.87 inches
• Weight: 0.85 lb
• EAN or UPC: 782475095919
