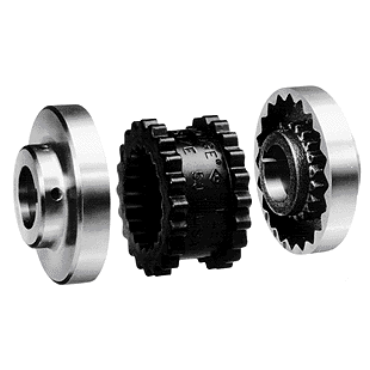

Dodge 11NELEMENT D-Flex Coupling Insert Power Each

Product Description

The Dodge 11NELEMENT is a D-Flex Coupling Insert designed for reliable performance in various applications. Its interchangeable components enable quick installation. The insert slides into position for a snug fit without the need for lubrication. This product ensures no metal-to-metal contact, providing a quiet and clean operating environment.

• Quick installation with interchangeable components
• No lubrication required for operation
• Handles loads evenly to reduce stress buildup

Product Highlights

Engineered for ease of use, this coupling insert offers hassle-free installation and maintenance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943226

Technical Specifications

• Insert Style: Two Piece
• Outside Diameter: 8.1875 inches
• Maximum RPM: 3,600 rpm
• Sleeve Type: N
• Maximum Temperature Range: 200 °F
• Minimum Temperature Range: -30 °F
• Coupling Size: 11
• Width: 4 inches
• Maximum Torque Rating: 4,530 inch lb
• Power at RPM: 129.6 hp at 1800 rpm
• Torsional Stiffness: 7300 inch pounds/radian
• Material: Neoprene
• Weight: 6.33 lb
• EAN or UPC: 782475875887
