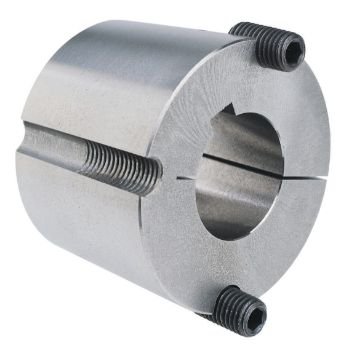

Dodge 119641 DOD 2517 X 55MM-KW Bushing

Product Description

The Dodge 119641 DOD is a taper lock bushing designed for reliable performance in various equipment. This bushing type is crucial for enabling the connection between the shaft and the gear, providing a secure and efficient method of attachment.

• Constructed from sintered steel for durability.
• Features a bore diameter of fifty-five millimeters.
• Compatible with a variety of applications in the mechanical and industrial sectors.

Product Highlights

This taper lock bushing can withstand a rated torque of eleven thousand six hundred inch-pounds, making it suitable for demanding applications.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 119641 DOD
• Bushing Type: Taper-Lock
• Bore Length: 1.75 inches
• Bushing Size: 2517
• Integral Key: No
• Number of Bolts: 2

Technical Specifications

• Bore Diameter (Actual): 55 millimeters
• Keyway Size: 16 X 10
• Shaft Attachment: Finished Bore
• Installation Torque: 430 inch-pounds
• Rated Torque: 11600 inch-pounds
