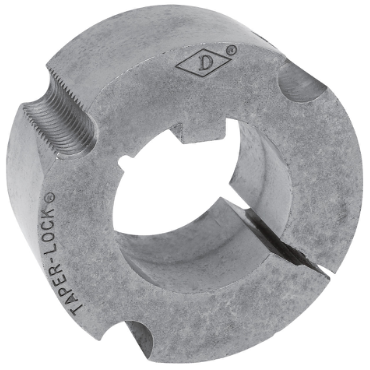

Dodge 1108X9/16KW Taper Lock Bushing

Product Description

The Dodge Taper Lock Bushing, MPN 1108X9/16KW, is a reliable component used in various mechanical applications. This bushing offers a simple installation and removal process. It is made of sintered steel, ensuring durability and resistance to wear. This product is designed for flush mounting, eliminating any protruding parts, which aids in a clean assembly.

• Easy on, easy off installation
• Compact design suitable for tight spaces
• Flush mounting to avoid interference with surrounding components

Product Highlights

The Taper Lock Bushing is ideal for effectively connecting shafts and ensuring proper alignment. It provides torque capacity of 100 lbf, making it suitable for a range of applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791712

Technical Specifications

• Large Diameter: 1.511 inches
• Capscrew Size: 1/4 inches x 1/2 inches
• Bore Size: 0.5625 inches
• Bolt Circle Diameter: 1.29 inches
• Bore Type: Inch
• Torque Capacity: 100 lbf
• Wrench Torque: 4.48 lbf
• Bushing Series: 1108
• Material: Sintered Steel
• Length Through Bore: 7/8 inches
• Keyway Size: 1/8 inches x 1/16 inches
• Cap Screws: 2
• Weight: 0.31 lb
• UPC: 782475097609
