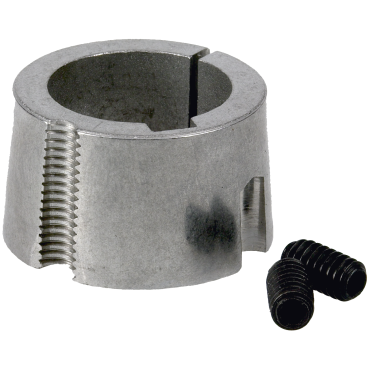

Dodge 1108X24MM8X3.3MM Taper Lock Bushing

Product Description

The Dodge 1108X24MM8X3.3MM is a Taper Lock Bushing designed for efficient mounting in various applications. This bushing features a bore size of twenty-four millimeters and a keyway size of eight millimeters by three point three millimeters.

• Easy to install and remove
• Compact design
• Flush mounting eliminates protruding parts

Product Highlights

This Taper Lock Bushing provides reliable performance with a torque capacity of one hundred lbf, making it suitable for different mechanical setups.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944611

Technical Specifications

• Torque Capacity: 100 lbf
• Bore Type: Metric
• Bore Size: 24 mm
• Keyway Size: 8 mm x 3.3 mm
• Length Through Bore: 7/8 in
• Bushing Series: 1108
• Bolt Circle Diameter: 1 29/64 in
• Cap Screws: 2
• Material: Sintered Steel
• Wrench Torque: 4.48 lbf
• Large Diameter: 1.511 in
• Capscrew Size: 1/4 x 1/2
• Weight: 0.2 LB
• EAN or UPC: 782475538270
