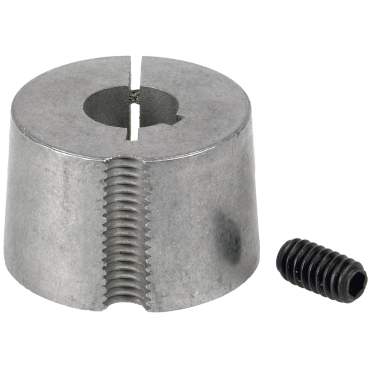

Dodge 1008X22M6X2.8MM Taper Lock Bushing

Product Description

The Dodge Taper Lock Bushing 1008X22M6X2.8MM provides a reliable solution for securing components in mechanical systems. This bushing is designed for a bore size of twenty-two millimeters, making it suitable for various applications where precise alignment is crucial.

• Easy on, easy off installation.
• Compact design that allows for flush mounting.
• No protruding parts for a clean look.

Product Highlights

The Taper Lock Bushing series is designed for efficient force transmission and ease of use in machine setups.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944600

Technical Specifications

• Weight: 0.18 LB
• Bore Size: 22 mm
• Bore Type: Metric
• Large Diameter: 1.386 in
• Small Diameter: 2 in
• Length Through Bore: 7/8 in
• Capscrew Size: 1/4 x 1/2
• Material: Sintered Steel
• Torque Capacity: 100 lbf
• Wrench Torque: 4.58 lbf
• Cap Screws: 2
• Keyway Size: 6 mm x 2.8 mm
• Bushing Series: 1008
• EAN or UPC: 782475530762
