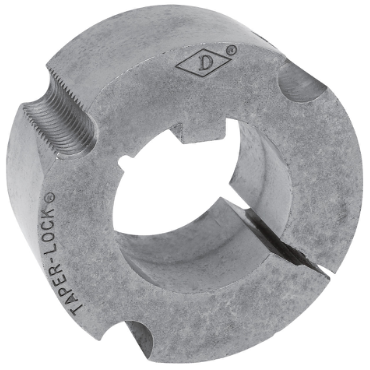

Dodge 1008X13/16KW Taper Lock Bushing

Product Description

The Dodge 1008X13/16KW is a taper lock bushing used for mounting pulleys and gears on shafts. This component simplifies installation and removal. It features a smooth bore size of zero point eight one two five inches. This enables quick adjustments and replacements in various applications.

• Easy installation and removal.
• Sleek design for efficient use.
• Flush mounting, no protruding parts.

Product Highlights

The Dodge taper lock bushing is designed for reliable performance in machinery. It is ideal for use in HVAC systems, conveyors, and various industrial settings where secure fittings are essential.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944592

Technical Specifications

• Bore Size: 0.8125 in
• Keyway Size: 3/16 x 3/32
• Bushing Series: 1008
• Capscrew Size: 1/4 in x 1/2 in
• Cap Screws: 2
• Small Diameter: 2 in
• Bore Type: Inch
• Torque Capacity: 100 lbf
• Material: Sintered Steel
• Wrench Torque: 4.58 lbf
• Length Through Bore: 7/8 in
• Bolt Circle Diameter: 1 21/64 in
• Large Diameter: 1.386 in
• Weight: 0.212 lb
• EAN or UPC: 782475096657
