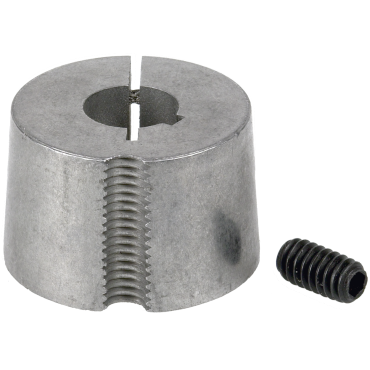

Dodge 1008X11/16KW Taper Lock Bushing

Product Description

The Dodge 1008X11/16KW Taper Lock Bushing is designed for reliable and straightforward installation in various applications. This bushing features a bore size of 0.6875 inches, providing a secure fit for shafts. It incorporates a clean and compact design that allows for flush mounting without any protruding parts.

• Easy on, easy off installation
• Designed with a compact and clean layout
• Flush mounting with no protruding components

Product Highlights

This Taper Lock Bushing is ideal for use in mechanical applications where a secure fit is essential. Its simple design enhances ease of use and maintenance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944591

Technical Specifications

• Capscrew Size: 1/4 in x 1/2 in
• Bushing Series: 1008
• Bore Type: Inch
• Material: Sintered Steel
• Small Diameter: 2 in
• Torque Capacity: 100 lbf
• Bolt Circle Diameter: 1 21/64 in
• Wrench Torque: 4.58 lbf
• Length Through Bore: 7/8 in
• Keyway Size: 3/16 x 3/32
• Large Diameter: 1.386 in
• Cap Screws: 2
• Bore Size: 0.6875 in
• Weight: 0.27 LB
• EAN or UPC: 782475096633
